Lesson Overview

In this lesson, students will learn how to accurately measure and mark dimensions using a tape measure and speed square. They will practice marking standard construction layouts and angles on wood to prepare for framing and finish carpentry tasks.

There are two essential layout tools in carpentry: the tape measure and the speed square.

Reading a tape measure accurately is a foundational carpentry skill. Most tape measures in the U.S. use imperial units—inches and feet. Each large numbered line on the tape represents 1 inch, with the foot marks (e.g., 1F, 2F) often highlighted in red or bold. Between each inch are fractional lines. The longest line between inches is ½ inch, the next longest is ¼ inch, then ⅛ inch, and finally 1⁄16 inch, which is the smallest common division. Each of these marks represents a smaller portion of the inch and helps carpenters make precise cuts and layouts.

It`s also important to understand the hook tab at the end of the tape. This metal piece is designed to move slightly—it compensates for its own thickness when taking inside versus outside measurements. For highly precise work, carpenters sometimes “burn an inch” by starting at the mark to avoid any potential error from the hook. Reading a tape measure confidently means understanding the numbering system, recognizing fractional divisions, and knowing when to adjust for accuracy.

A speed square is one of the most versatile and essential tools in carpentry, often used for measuring, marking, and checking angles. It’s shaped like a right triangle and combines the functions of a try square, miter square, protractor, and saw guide all in one. The fence (or lip) allows you to snug the tool against the edge of a board for quick 90° (square) and 45° markings. This makes it easy to draw perpendicular lines for cutting or layout work.

The speed square is also equipped with a degree scale, which lets you measure or mark angles for rafters, stairs, or angled cuts. The pivot point is the corner where the fence meets the triangle—this is where you rotate the square to find a specific angle. Along the edge are scribe notches, which let you quickly mark parallel lines by inserting a pencil and sliding the square along the wood. Whether you`re framing, cutting, or laying out a project, the speed square helps ensure clean, accurate measurements with minimal tools.

Materials Needed

  • 2 ft piece of 2x4 or scrap board

  • Speed square

  • Tape measure

  • Carpenter’s pencil

  • Safety glasses

Instructions

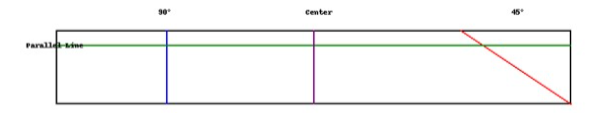

1. Measure and mark a 90° line – From one end of the board, measure 6 inches along the edge and make a small mark. Place the lip of the speed square against the board’s edge and draw a straight 90° line across the board.

2. Measure and mark a 45° line – From the opposite end, measure 4 inches along the edge and make a mark. Place the speed square’s lip against the board and pivot until your pencil is in the 45° slot, then draw the line.

3. Create parallel layout lines – From one reference edge, measure 1½ inches at both ends of the board. Use the speed square to connect these marks for a long, parallel line.

4. Mark a center point – Measure the full length of the board, divide by two, and mark the center point. Draw a cross mark at the center using the speed square.

5. Check your work – Verify your 90° lines are square, 45° lines are accurate, and parallel lines are evenly spaced.

Completion Checklist

  • Correctly measured and marked a 90° line

  • Correctly measured and marked a 45° line

  • Drew parallel lines at consistent spacing

  • Located and marked the center point accurately

All lines are straight, clean, and labeled
