8. Install Baseboard and Casing Pieces on Project Panel.

Objective

Students will accurately measure, cut, and install baseboard and casing pieces on a mock project panel to simulate interior finish carpentry installation.

Materials Needed

• Pre-cut or scrap lengths of baseboard and casing trim

• Mock panel or plywood board (approx. 24" x 24")

• Miter saw or hand saw

• Wood glue or finish nails

• Tape measure, pencil, speed square

• Optional: caulk, filler, and sandpaper for finishing

Instructions

1. Measure the length of the bottom edge of the panel for your baseboard.

2. Cut the baseboard piece to fit using a straight 90° cut.

3. Measure and mark for casing pieces to simulate a window or door trim set on the panel.

4. Cut casing pieces using 45° angles at the corners.

5. Attach all trim pieces securely to the panel using glue and/or finish nails.

6. (Optional) Fill nail holes and seams, then sand for a smooth finish.

7. Label your panel with your name on the back for evaluation.

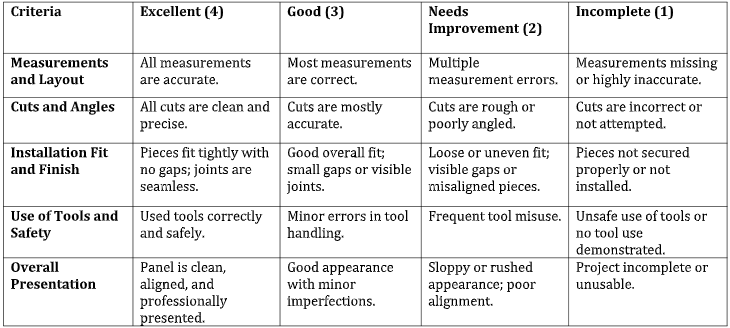

Assessment Rubric (20 points)

Total Score: /20
